CarMover 4R

Technical Characteristics

Traction mod	Electric
How to use	Standing + Accompanying

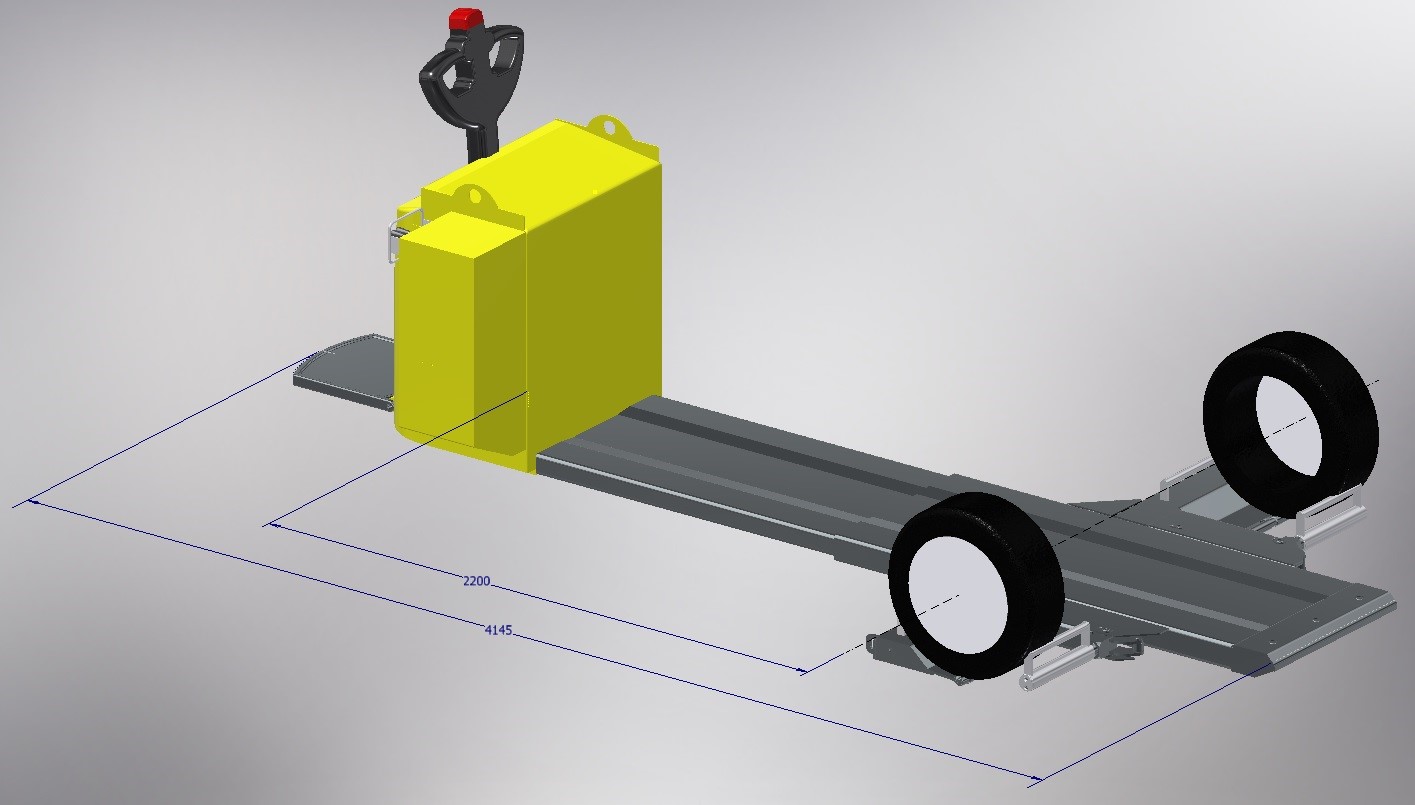

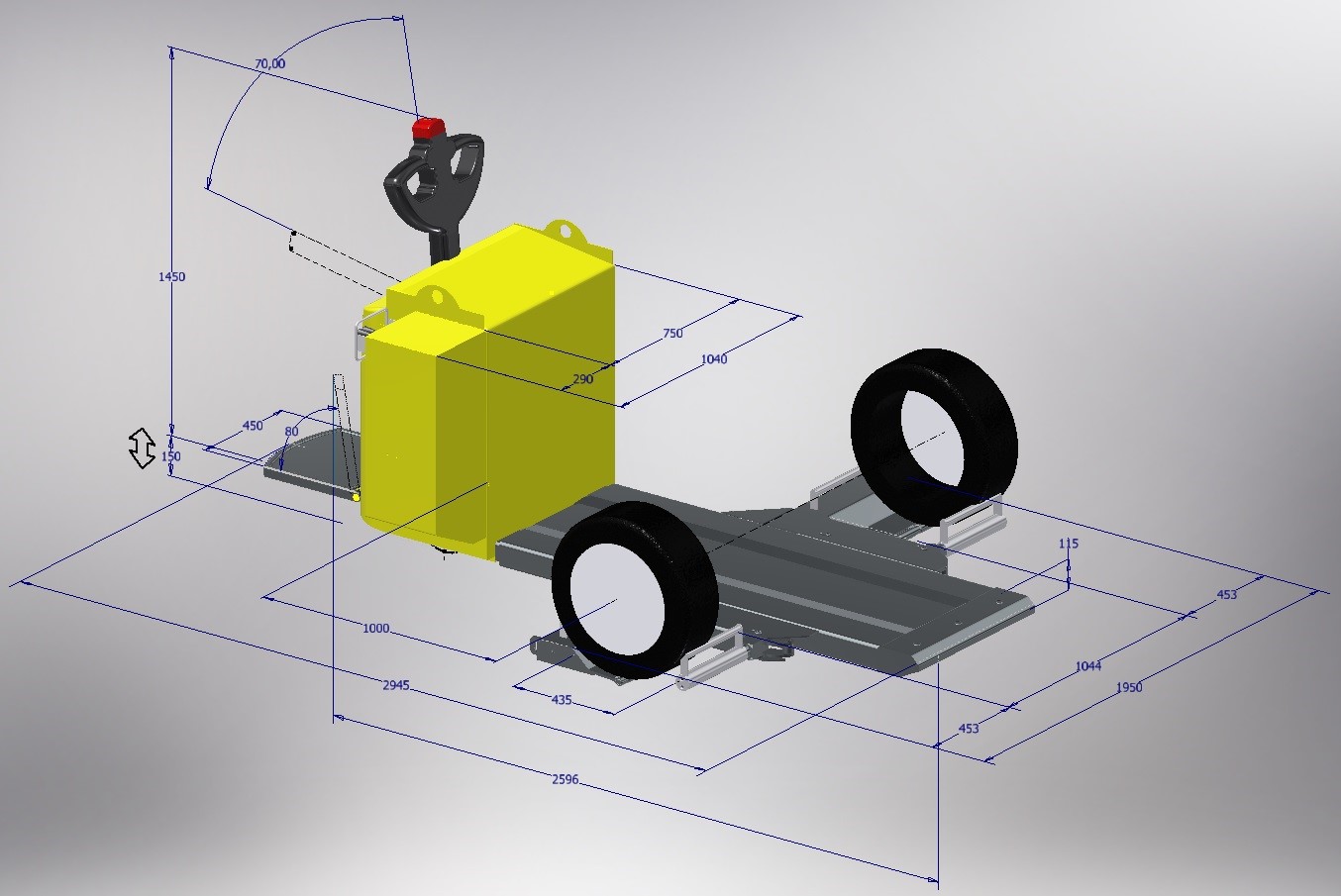

Dimensions

Overall length	3850 mm
Overall width	1800 mm
Overall height	1100 mm
Unloaded weight	600 + 550 kg
Radius of gyration	3000 mm

Travel Capacity

Maximum vehicle weight	2500 kg
Maximum wheelbase	300 cm

CARTRACT 4 can move all locked vehicles with the four wheels locked and it can fit to all size of vehicle, from the smallest like a Renault Twingo to the biggest, like an Audi Q7.

We made the machine able to:

• take all vehicle up to 2.5 tons and 3 meters wheelbase
• park a vehicle the nearest from another one (nearest than can do a driver) which means that you can win space
• pass over small obstacles (doorsill or threshold gate)
• no CO2 emission, so you can work in a workshop safely
• easy to use, you can learn to drive it in less than an hour

Operating principle of CARTRACT 4

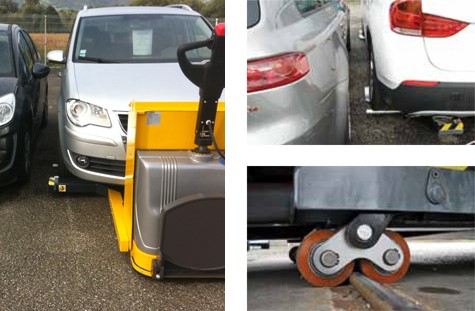

Operating principle:  need to slip  the car mover under the vehicle, from the front or from behind, locked the wheels (front or back, it depends from where you slide the vehicle mover) with the hydraulic clamping block, after you adjust the vehicle mover to slid it to the next wheels .

When the vehicle mover is totally  under the vehicle, you activate a command that lift the vehicle up to 10 centimeters, thereby wheels don't touch the ground.

The vehicle can be moved forward, backward or roundabout.
