TowTrack

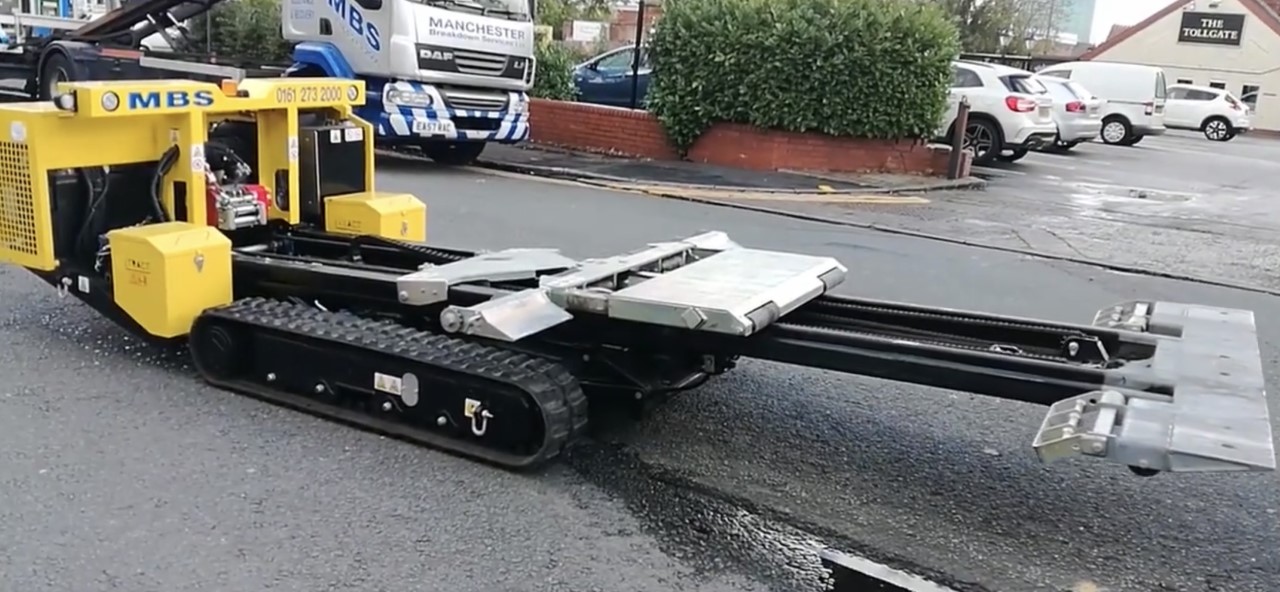

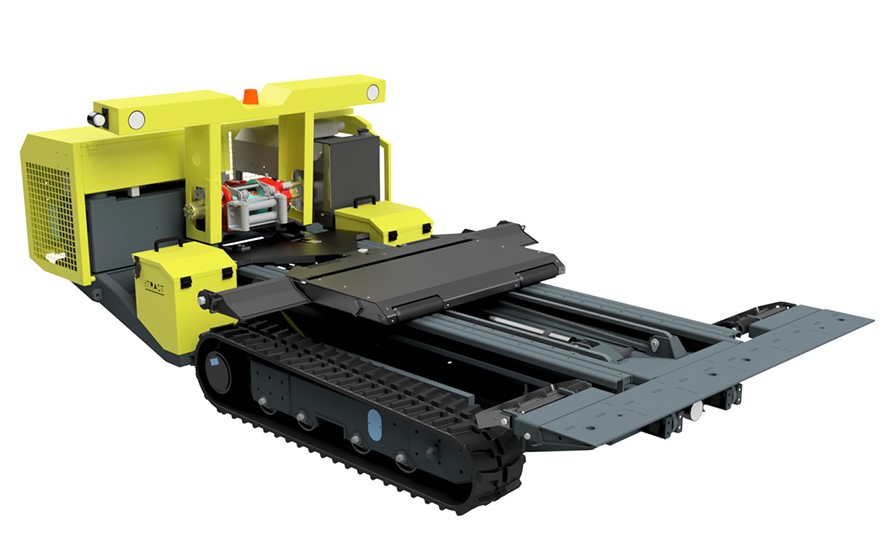

TowTract is a remote control unit with caterpillars controlled by a radio-command.
This is very effective for the towing and the handling of vehicles that are locked, disabled, electric and/or in a low clearance parking deck. The concept is to remove all types of vehicles, gently and without any technical constraints (the system slip underneath the vehicle and lift it without traction effect).
TowTract was created in 2012, a patented innovation, this very original automobile tow truck is at ease everywhere and especially where the usual recovery trucks no longer pass and unlike 4x4 baskets, there are no trolleys to add...
TowTract is able to take a vehicle even if the car is locked, damaged or burned, about anywhere (underground parking, small courtyard, in a filed, in the mud or on the snow, etc...), specially where a truck can not go because of it size.
The TowTract can go on a truck with its load, with a vehicle of 2.5 tons, even if the truck is not a tow truck and it can go down and park the vehicle to store it.
Technical Characteristics
Dimensions | 3520 (L) x 1800 (l) x 1280 (h) m |
Weight | 1850 kg |
Payload | 2500 kg |
Winch | 2200 kg |
Maximum speed (1st speed) | 2,2 km/h |
Maximum speed (2nd speed) | 4,5 km/h |
Maximum climbable gradient | 17° (30%) |
Engine
Brand | Briggs & Stratton |
Fuel | Gasoline |
Max power | 35 HP - 20 kW |
Rotation speed | 3600 rpm/max |
Starter | Electric |
Fuel consumption | 9 lt/h - 3600 rpm |
Transmission | Hydrostatic |
Oil tank | 52 lt |
Fuel tank | 21 lt |
Caterpillar
Dimensions | 250 x 72 x 57 mm |
Tension | Grease |
Material | Rubber |
Command
Type | Electrohydraulic with radio-command |
Available options with TowTract
|
